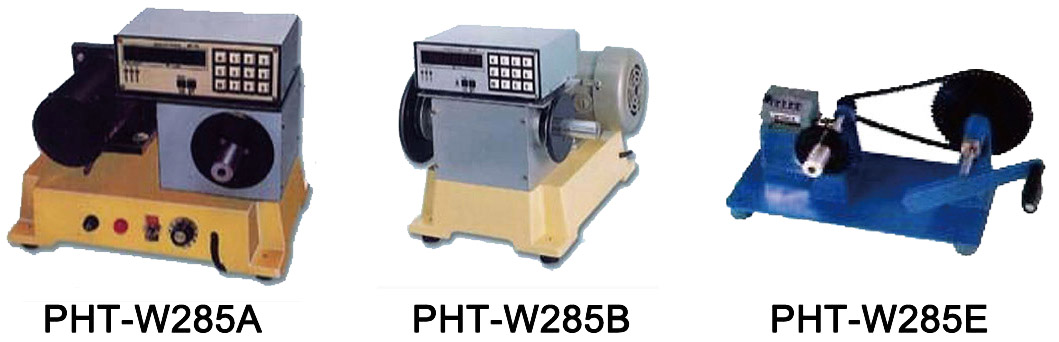

Semi auto winding machine |
|
|
|
Model |
PHT-W285A |
PHT-W285B |
PHT-W285E |
|
Number of spindles |
1 |
1 |
|
Wire diameter |
0.1 ~ 1.5 mm |
0.1 ~ 1.5 mm |
|
Spindle motor |
1/8 HP DC |
---- |
|
Spindle speed |
4500 RPM |
---- |
|
Memory capacity |
10 sequences |
1 sequences |
|
Power |
AC 110V / 220V |
---- |
|
Machine dimensions |
40 x 30 x 34 cm |
30 x 40 x 34 cm |
25 x 30 x 24 cm |
|
Weight |
16 kgs |
11 kgs |
Use :
Applicable to coil winding, transformer, etc.
Features : Simple construction and easy handling : less failure and easy maintenance
|
|
|

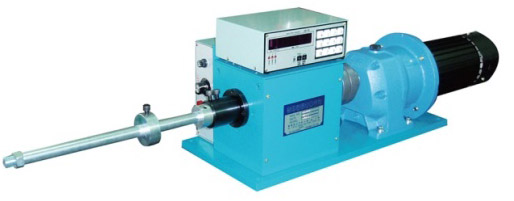

Semi auto thick wire winding machine |
| |
|
|
|
Model |
PHT-W285H |
|
Number of spindles |
1 |
|
Wire diameter |
Max 3.0 Φ |
|
Spindle motor |
1 HP AC |
|
Spindle speed |
600 RPM |
|
Memory capacity |
10-segment winding data |
|
Power |
AC 110V / 220V |
|
Weight |
50 kgs |
|
Model |
PHT-W285D |
|
Speed |
160 RPM |
|
Motor |
40W AC |
|
Power |
AC 110V / 220V |
|
Machine dimensions |
40 x 22 x 31 cm |
|
Weight |
14 kgs |
|
Use : This powerful semi auto coil winding machine is used for wire diameter below 3 mm.
Features : Simple construction and easy handling : less failure and easy maintenance |
| |
| |
|

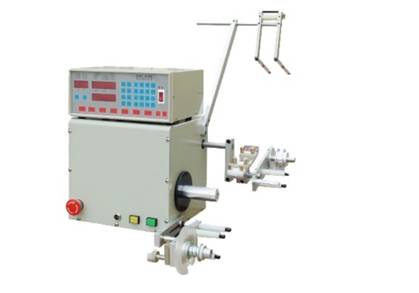

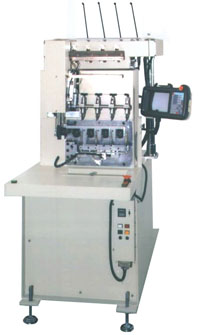

High frequency winding
machine |
|
Model |
PHT-M820-B |
|
Spindle |
1 |
|
Control method |
Microcomputer control |
|
Memory capacity |
999 segment winding information |
|
Spindle speed |
0 ~ 2000 RPM |
|
Wire diameter |
0.03 ~ 1.0 mm |
|
Coil outer diameter |
Max 100 mm |
|
Coil width |
0 ~100 mm |
|
Motor |
1/4 HP DC1Φ |
|
Machine dimensions |
60 x 72 x 63 cm |
|
Weight |
32 kgs |
|
|
Use : PHT-M820-B is used for a wide variety of high frequency, switch power transformer, etc.
Features : It can used on coil that require one layer of wire and one layer of tape |
| |
| |
| |

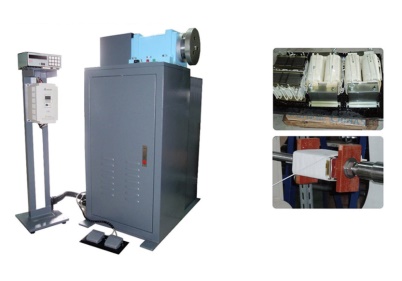

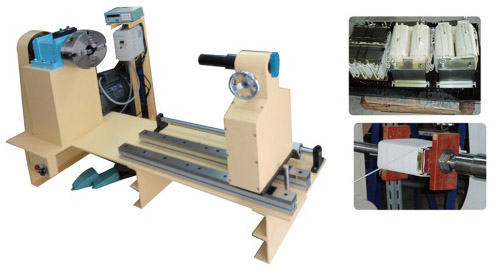

Thick wire winding machine
|
Model |
PHT-MH-01A |
|
Number of spindles |
1 |
|
Wire diameter |
3 x 10 mm |
|
Coil outer diameter |
600 |
|
Coil length |
700 |
|
Memory capacity |
10-segment winding information |
|
Speed |
45 RPM |
|
Power |
3 Φ 220V / 380V |
|
Machine dimensions |
215 x 70 x 100 cm |
|
Weight |
800 kgs |
Use : Applicable to UPS transformer, etc.
Features : This winding machine is used for thick wire winding, which has high production efficiency, good quality and good stability. |
|
|
Model |
PHT-MH-01B |
|
Number of spindles |
1 |
|
Wire diameter |
3 x 10 mm |
|
Coil outer diameter |
600 |
|
Coil length |
700 |
|
Memory capacity |
10-segment winding information |
|
Speed |
180 circles |
|
Power |
3 Φ 220V / 380V |
|
Machine dimensions |
88 x 50 x 115 cm |
|
|
Use : Applicable to UPS transformer, etc.
Features : This winding machine is used for thick wire winding, which has high production efficiency, good quality and good stability. |
| |
|
| |
|
Thick wire tension controller |
| |
|
|
Use :
Thick wire tension controller is developed for thick wire winding machine use. It has superior performance and easy operation. |
| |
| |
| |
|

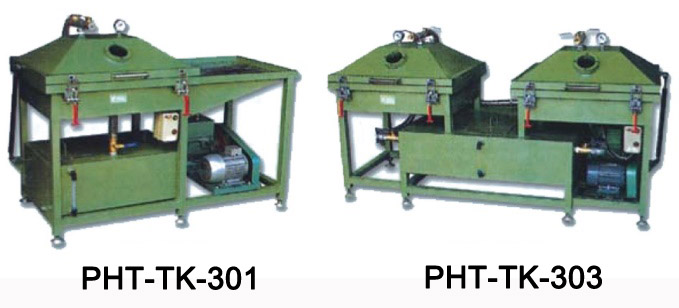

Coil vacuum steeping machine |
|
|
|
Model |
PHT-TK-301 |
PHT-TK-303 |
|
Speed |
70 x 60 x 17 |
70 x 60 x 17 - 2pcs |
|
Motor |
1 HP |
|
Power |
AC 220V / 380V |
|
Machine dimensions |
150 x 70 x 110 cm |
190 x 70 x 110 cm |
|
Weight |
280 kgs |
350 kgs |
Features :
This machine is used for varnish vacuum steeping. It has superior performance and easy operation. |
| |
| |
|
Coil tape wrapping machine |
| |
|
|
Model |
PHT-W285D |
|
Speed |
160 RPM |
|
Motor |
40W AC |
|
Power |
AC 110V / 220V |
|
Machine dimensions |
40 x 22 x 31 cm |
|
Weight |
14 kgs |
Features : This coil tape wrapping machine cam automatically set the number of turns of wrapping tape and tape cut action is performed manually. |
| |
| |
|
Manual coil tape wrapping machine |
| |
|
|
Model |
PHT-TX-10 |
|
Machine dimensions |
22 x
15 x 20 cm |
|
Weight |
4 kgs |
Features :
The manual coil tape wrapping machine can save the cost of investment equipment and does not require maintenance.
|
| |
|
Transformer automatic tape wrapping machine |
| |
|
|
Model |
PHT-AX-120 |
|
Scope of application |
EE16 ~ EE55 |
|
Speed |
150 RPM |
|
motor |
25W AC |
|
Power |
AC 110V / 220V |
|
Machine dimensions |
25 x 30 x 24 cm |
|
Weight |
11 kgs |
|
|
Use : Applicable to transformer.
Features : The machine is auto tape wrapping and tape cut action is performed manually. It has superior performance and easy operation. |
| |
|
Wrapping tape preparation rack |
| |
|
|
Model |
PHT-TX-11 |
|
Rack dimensions |
27 x 20 x 3 cm |
|
Weight |
2 kgs |
|
Features :
After cutting, the wrapping tape of transformer or coil is placed on this preparation rack for easy take and using. |
| |
| |
| |
|
Enameled wire automatic peeling machine |
|
| |
|
|
|
Model |
PHT-AX-4 |
|
Wire diameter |
0.5 ~ 0.3 mm |
|
Speed |
3600 RPM |
|
Motor |
40W AC |
|
Power |
AC 110V / 220V |
|
Machine dimensions |
24 x 12 x 20 cm |
|
Weight |
7 kgs |
|
Use : This machine is used to strip the outer skin of enameled wire before welding the wire. |
| |
| |
| |
Transformer pin auto adjust machine |
|
|
|
|
|
Model |
PHT-AX-122 |
|
Scope of application |
0.2 ~ 2,0mm |
|
Motor |
25W AC |
|
Power |
AC 110V / 220V |
|
Machine dimensions |
32 x 27 x 15 cm |
|
Weight |
16 kgs |
Use : The pin of the transformer need be inserted on the PC board, by using this machine to adjust its pin |
| |

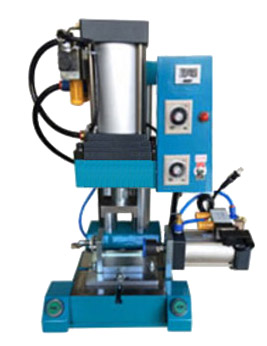

Transformer metal case forming machine |
| |
| |
|
|
Model |
PHT - 3576 |
|
Apply range |
E I - 35 ~ E I - 76 |
|
Former |
one size / 1 set |
|
Control method |
Automatic |
|
Air pressure |
6 - 7 kg / cm2 |
|
Power supply |
AC 110 V / 220 V |
|
Machine dimensions |
45 x 42 x 65 cm |
|
Weight |
92 kgs |
 Transformer metal case forming machine
|
|
Use :
This machine used to shape the four corner of the transformer shell.
Features :
It has superior performance and easy operation. |
| |
| |
| |
Coil automatic tape wrapping machine |
| |
|
|
|
Model |
PHT - 2100 |
|
Width of tape |
Max. 40 mm |
|
Working range |
Max. 70 mm |
|
Working speed |
3 sec / one cycle |
|
Cycle setting |
1 - 9.5 |
|
Auto feeding |
On / off control |
|
Power consumption |
100 W |
|
Power |
AC 110 V / 220 V |
|
Machine dimensions |
42 x 32 x 32 cm |
|
Weight |
28 kgs |
Coil automatic tape wrapping machine
Use : Applicable to transformer.
Features : The machine is auto tape wrapping and cutting. It has superior performance and easy operation. |
| |

|
|
