High
Precision Vacuum
Oven |
The PHT high-precision vacuum oven is suitable for synthetic materials,
resins, and more. It offers uniform heating and precise temperature control,
with a range of 40 to 200°C and ±1% uniformity. Features include
microcomputer PID control, an electronic timer, and a vacuum gauge from 0 to
760 mm Hg.
|
| Feature :
•Temperature range : 40 ~ 200 °C •Temperature uniformity : + - 1% •Temperature control : Micro computer PID control •Timer : Electronic •Vacuum gauge : 0 ~ 760 mm Hg | Model | Inside dimension W x D x H cm | Outside dimension W x D x H cm | KW | Cap | PHT - 30 | 30 x 30 x 30 | 45 x 45 x 75 | 0.8 | 27 L | PHT - 40 | 40 x 40 x 40 | 60 x 55 x 85 | 1.5 | 64 L | PHT - 60V | 60 x 60 x 60 | 90 x 78 x 160 | 7 | 216 L |
|
Hot
Air Circulation
Oven |
This oven is suitable for drying and heating various materials such as
chemicals, printing items, pharmaceuticals, rubber, and plastics. Other
specifications and sizes are available upon request. |
| Feature :
•Temperature range : 50 ~ 200 °C •Temperature uniformity : + - 1% •Temperature control : Micro computer PID control •Timer : Electronic | Model | Inside dimension W x D x H cm | Outside dimension W x D x H cm | KW | Cap | PHT - 45 | 45 x 40 x 40 | 58 x 55 x 85 | 1.5 | 72 L | PHT - 60 | 60 x 50 x 50 | 73 x 65 x 97 | 3 | 150 L |
|
Model | Inside dimension W x D x H cm | Outside dimension W x D x H cm | KW | Trays | PHT - 01 | 60 x 50 x 50 | 82 x 65 x 100 | 3 | 3 | PHT - 02 | 60 x 50 x 90 | 82 x 65 x 148 | 4 | 4 | | PHT - 03 | 80 x 60 x 100 | 102 x 80 x 172 | 6 | 5 | PHT - 04 | 100 x 60 x 100 | 125 x 80 x 172 | 8 | 5 | PHT - 05 | 120 x 60 x 100 | 145 x 80 x 172 | 8 | 5 | PHT - 06 | 140 x 60 x 120 | 165 x 75 x 182 | 11 | 12 | PHT - 07 | 160 x 80 x 140 | 190 x 95 x 205 | 14 | 14 | PHT - 08 | 180 x 100 x 140 | 210 x 115 x 205 | 19 | 14 | PHT - 09 | 200 x 120 x 160 | 230 x 135 x 225 | 25 | 16 |
Vibro
Separator & Filter These machine are used for various kinds of synthetic materials and resin such as liquids, rubbers, PVC, chemicals, coal powders, ceramic powders, sands metallurgical materials, foods, pharmaceuticals, fabrics, grains, etc.
|
Model | PHT - 800 | PHT - 1000 | PHT - 1500 | Sieve size | Φ 750 mm | Φ 950 mm | Φ 1430 mm | Layer | 1 ~ 3 | Motor (HP) | 1 | 2 | 3 |
Other spec & sizes are available. |
Dust
Collector PHT dust collectors is used for various machines such as those used in rubber fabricating, material blasting, etc.
| Model | PHT - 116 | PHT - 125 | PHT - 138 | Tube cloths | 16 pcs | 25 pcs | 30 pcs | Motor (AC) | 1 HP | 2 HP | 3 HP | Air entrance | 6” |
Other spec & sizes are available. |
|

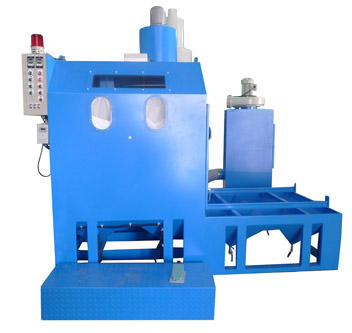

Sand
Blasting Machine PHT blasting machine is used for medium sized molds, dies, work pieces, exfoliating rust, paint, etc.
| Model | PHT - 550 | PHT - 600 | PHT - 710 | Turn table diameter (cm) | Φ 55 | Φ 60 | Φ 70 | Carriage max load ( kgs ) | 120 | 150 | Front door size (cm) | 75 x 65 | 100 x 80 | Side door size (cm) | 50 x 60 x 64 | 52 x 62 x 64 | 85 x 95 x 74 |
Other spec & sizes are available. |
|
|
|
|
