Electrostatic Flocking Machine

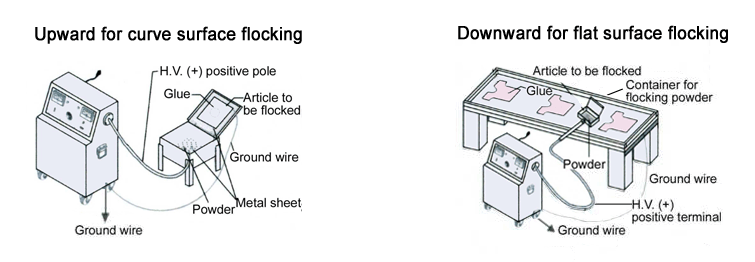

Electrostatic flocking is a technique that utilizes the principle of electrostatic attraction to uniformly embed fibers onto the surface of an item. A strong electric field is created by applying a high-voltage current to the anode while grounding the cathode. When an adhesive-coated item passes through this electric field, fibers at the anode are attracted toward the cathode and fly vertically onto the adhesive surface. After drying, the fibers are firmly bonded, resulting in a fine and uniform flocked surface.

ˇ@

ˇ@

Model

PHT - 80L

PHT - 100E

Power consumption

180 W

250 W

Voltage output

80 KVP

100 KVP

Current output

0 - 10 mA

Machine size cm

38 x 45 x 58

46 x 62 x 120

Machine weight

48 kgs

175 kgs

Power supply

AC  220 / 380 V / 50 Hz

ˇ@

ˇ@

ˇ@

ˇ@

ˇ@

ˇ@

ˇ@

Application Scope

Since the flocking process is based on the attraction between positive and negative charges, this machine can be used on items of any shapeˇXflat, curved, concave, convex, or three-dimensionalˇXand in any location such as walls, floors, or ceilings. Except for water, almost any material can be flocked using this machine, including felt cloth, flocked paper, wooden products, jewelry boxes, clothes racks, aluminum foil, hardware, plastic toys, rubber, sponge, ceramics, automotive interior parts, marble, glass, fabric, leather, pulp products, suitcases, and more.

ˇ@

Adhesive and Drying Method

Various types of adhesives are available, and the appropriate one should be selected based on the material of the item being flocked. The drying process also depends on the material. For example, felt cloth typically requires heat treatment at 130ˇV150˘XC, which can be achieved using steam, gas, or electric heaters.

ˇ@

Features

The unit features auto power-off and alarm for safety. Adjustable current reduces faults and extends lifespan. It auto-trips if powder is too thick, protecting the system and ensuring quality. Full-wave rectification boosts efficiency and output. Suitable for automatic, semi-automatic, and manual use, it's user-friendly and ideal for home production.

ˇ@

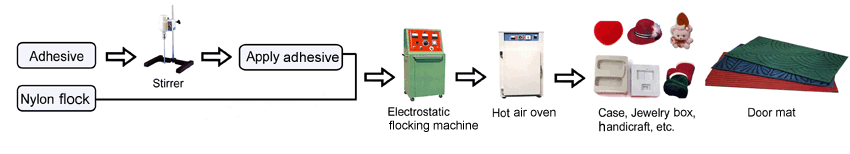

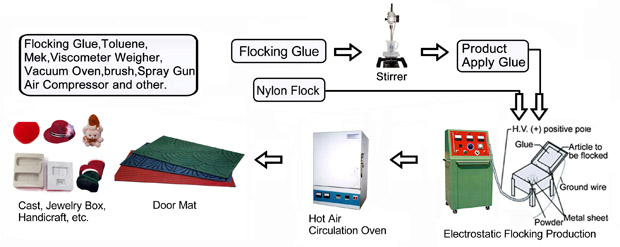

Electrostatic Flocking Production Flow Chart

ˇ@

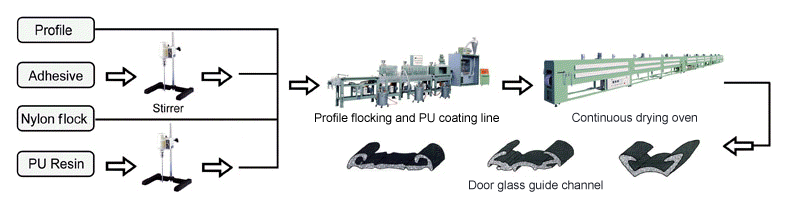

Profile Flocking and PU Coating Line

ˇ@

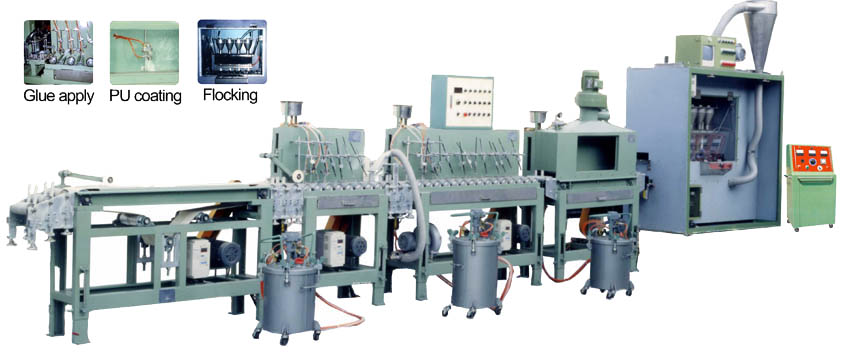

This machine is specially designed for flocking and PU coating of various rubber and plastic profiles, such as door glass guide channels, door seals, window weatherstrips, and trunk seals. It features high-speed production, excellent performance, simplified operation, labor savings, and stable product quality. The system is easy to install and maintain, and profile shapes can be changed quickly and efficiently.

ˇ@

ˇ@

Model

PHT - 053

Profile feeding conveyor

L 1300 x W 250 mm

Belt size

L 1270 x W 200 mm

Surface treatment device

3 units volume control valve / 6 pcs adjustable brush stand

Adhesive application

3 units volume control valve / 12 pcs adjustable brush stand

Air blower motor

AC 1 HP

PU coating device

Max. width 190 mm

Exhaust motor

AC 1 HP

Main motor

AC 1/4 HP x 4 units ( Inverter )

Material tank capacity

  20 kgs x 3 units

Flock chamber conveyor

W 150 mm

Main motor

AC 1 HP ( Inverter )

Control system

Automatic

Intake & exhaust motor

AC 1 HP

Line speed

15 m / min ( Adjustable )

Electrostatic generator

100 KV

Air pressure

8 - 12 kg / cm

Machine dimensions

L 10000 x W 950 x H 2850 mm
