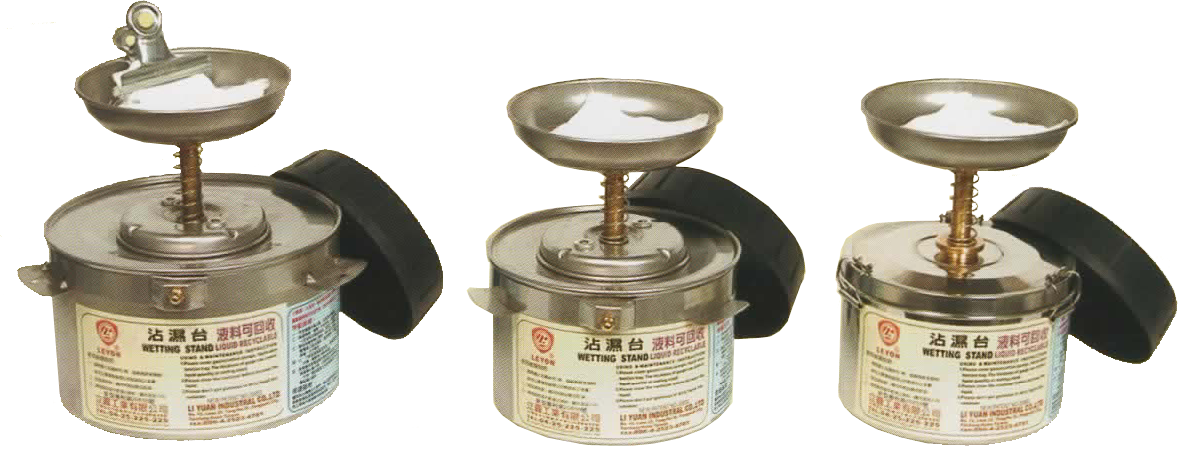

Wetting stand ( Liquid recyclable )

¡@

¡@

Wetting stand ( Liquid recyclable )

¡@

Model

PHT - 308

Material

SUS304 stainless steel and copper

Capacity

1.2L

1.5L

2L

Size (cm)

16x16x24

20x20x24

22x22x25

G. W:

1 kg

1.3 kg

1.5 kg

¡@

¡@

¡@

Performance :

After laboratory experiment, it proves that liquid material will be saved ( Volatility control ) more than 60% when ( Environment friendly) wetting stand have been applied.

¡@

Character :

1.Reduce pollution, no warry of volatility, evenly soaking, environment friendly, maintain body & mind health of employee, prevent the danger of gas explosion & toxication

2.No need to prepare & clean after daily work finished, safer & more convenient in operation. To reduce spiritual burden, just press it gently to use.

3.It provides the most appropriate humidity according to actual requirement.

¡@

Application :

Suitable for various finished ( Semi-finished ) products in factory, it is on innovated ideal container during in cleaning, mopping volatile liquid operation on the surface when apply chemical or place the sticker before packaging process. Such as for containing : cleaning naphtha, white gas, lubricant, gasoline, kerosene, benzene, alkane, acetone, alcohol, stencil, cleaner, release agent, etc. are flammable, explosive & toxic, high volatile organic solvents.

¡@

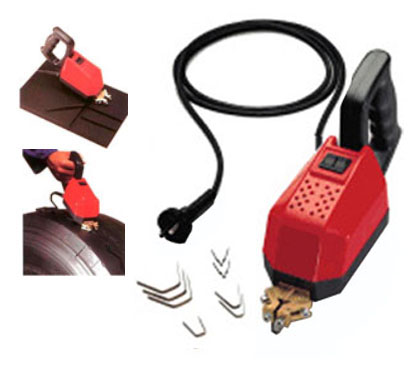

Regroover for rubber

This regroover is used for regrooving smooth tires with worn tread, restoring tread design after repair work, tread development, grooving of rubber roll, sheets and conveyor belts, profiling of friction linings & overlaps, and processing of ABS, EPDM, EPS, PA, PE, PP, PS, PVC¡K

¡@

¡@

Regroover for rubber

¡@

¡@

¡@

Model

PHT - 124

Transformer 170 VA

3 step switch

Cutting head with clamping width

2 - 28 mm

Electric

170 W

Blades clearly visable during cutting process

¡@

¡@

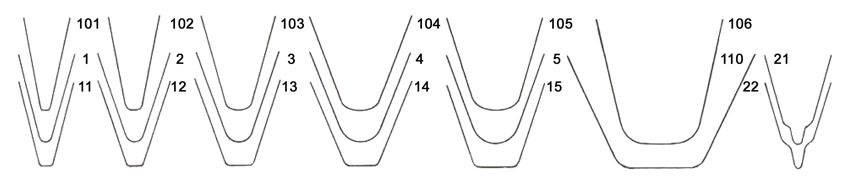

V-shaped

Round

Wedge

Cutting width

Cutting depth

Type

No.

Type

No.

Type

No.

¡@

¡@ ¡@ ¡@

101

70255

1

70333

11

70395

2   -

4  mm

7 mm

¡@

102

70250

2

70256

12

70316

4   -

6  mm

8 mm

¡@

103

70251

3

70315

13

70345

6   -

8  mm

10 mm

¡@

104

70252

4

70311

14

70332

8   -

10  mm

14 mm

¡@

105

70253

5

70394

15

70331

10   -

14  mm

16 mm

¡@

106

70254

¡@ ¡@ ¡@ ¡@

16   -

¡@

16 mm

¡@

110

70359

¡@ ¡@ ¡@ ¡@

22   -

¡@

16 mm

¡@

¡@

¡@

21

70247

¡@ ¡@ ¡@ ¡@

4 mm

¡@

¡@

¡@

22

70248

¡@ ¡@ ¡@ ¡@

6 mm

¡@
¡@

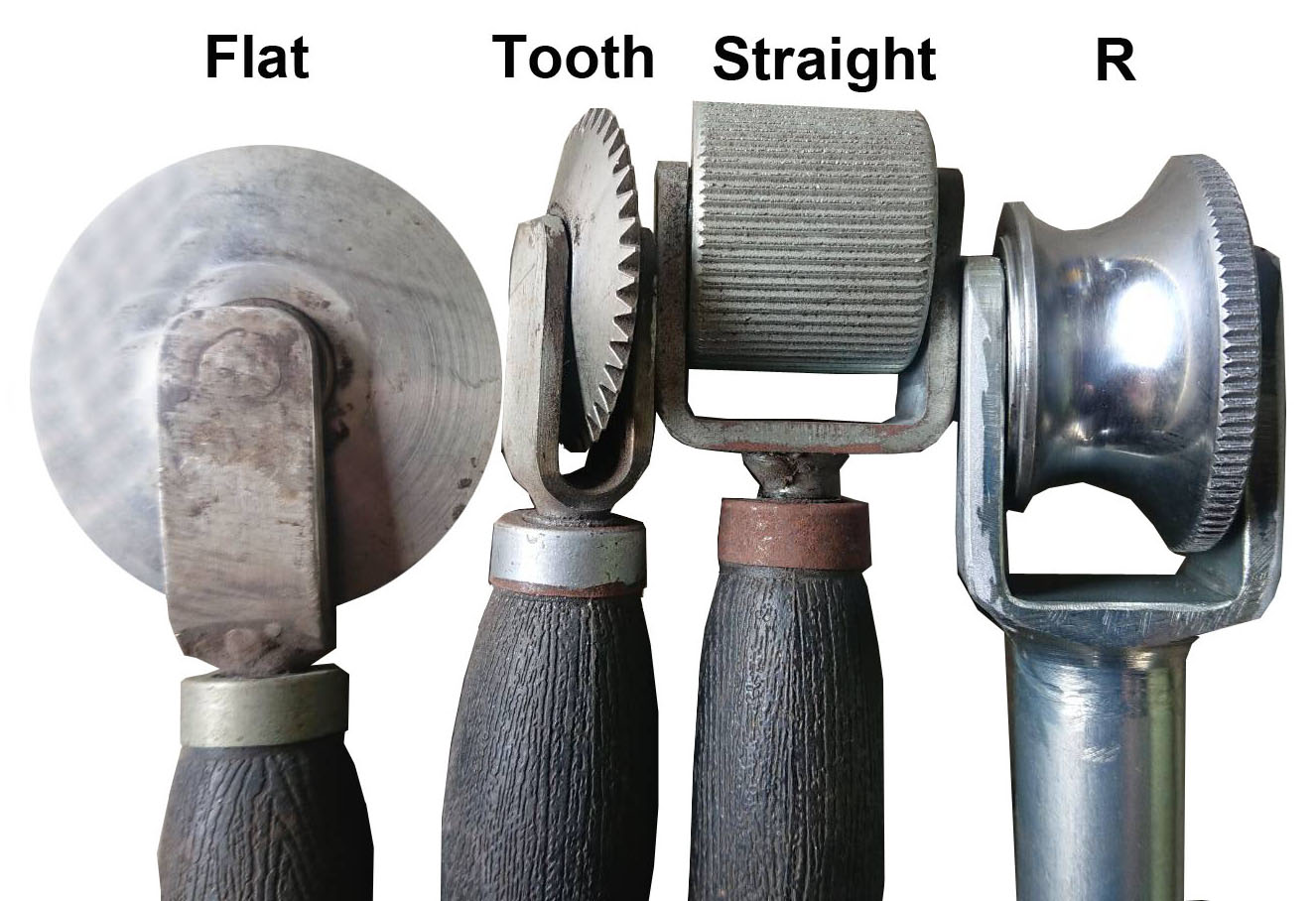

Hand steel roller

¡@
The hand steel roller surface is intended to aid in the installation and fusion of rubber , as well as to remove entrapped air bubbles of rubber roll process, green tire building, etc . The roller has a screw thread and adapt handle.

¡@

Model

PHT - 190

Type

Flat, Tooth, Wheel straight and R type

¡@

Hand steel roller
¡@
¡@

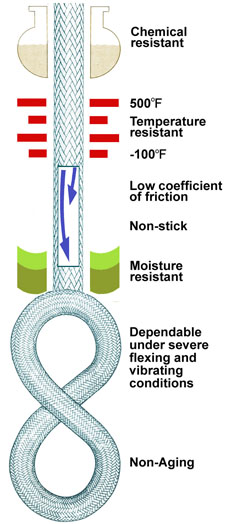

Steam flexible hose

¡@

This high pressure hose has many applications in hydraulic, pneumatic circuits and steam systems, such as urethane foam mixers, and multi - plicity chemicals resistant.

¡@

Tube:Temp, chemical resistant

          PTFE material.

¡@

Cover:Braided with stainless steel.

¡@

Temperature:-73¢XC ~ + 260¢XC

¡@


Hose

size

I.D.

O.D.

Working

pressure

Min burst pressure

Bend

radius

inch

mm

inch

mm

kg / cm

kg / cm

cm

3/16¡¨

 .125

3.18

.234

5.94

211

1,055

5.1

1/4¡¨

 .187

4.75

.312

7.93

211

1,055

5.1

5/16¡¨

 .250

6.35

.375

9.53

211

984

7.6

3/8¡¨

.312

7.93

.445

11.30

211

844

10.2

1/2¡¨

.406

10.31

.549

13.94

141

703

13.2

5/8¡¨

.500

12.70

.648

16.46

106

598

16.5

3/4¡¨

.625

15.88

.778

19.76

84

422

19.6

   1¡¨

.875

22.23

1.030

26.16

70

281

22.9

¡@

¡@

¡@

Hydraulic seal

These urethane U-packing & dust seals are application for rod, piston, etc.

Spec : UHR, UHP, UHS, UN, UNR, UNP, DH



¡@

¡@
