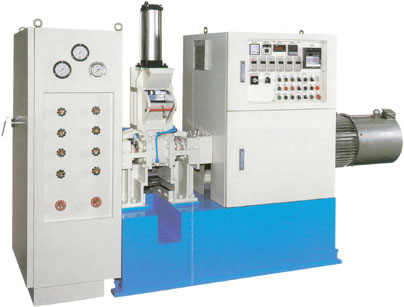

Laboratory Kneader

¡@

Model

PHT - 014

PHT - 016

PHT - 018

Capacity

3 Liter

Motor (AC HP)

10

20

30

Chamber motor

AC 1 HP

Exhaust fan

AC 1/4 HP

Feed position

Front position

Rotors (RPM)

30 / 25

60 / 44

100 / 73

Air pressure

6 - 7 kg / cm

Temperature control

Automatic

¡@

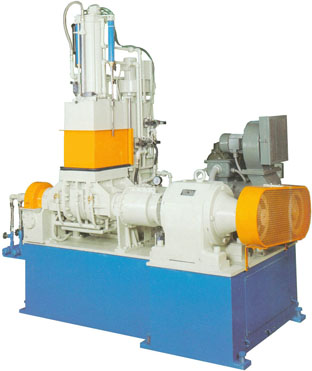

Laboratory Intensive Mixer

This 1.8L laboratory mixer is designed for material R&D and is suitable for various lab applications. It offers the same compounding function as production mixers, allowing accurate simulation of real manufacturing processes.

¡@

¡@

Model

PHT - 618

Capacity

1.8 L

Rotor speed (RPM)

Front 3.5 - 35 / Rear  3 - 30

Motor

AC 25 HP ( Inverter )

Air compressor

3 HP

Exhaust fan

1/4 HP

Water pump

1/2 HP

Air ram for floating weight

100 mm x ST 270 mm

Feed hopper cross-section

 115 mm x 80 mm

Ampere and temp. recorder

Automatic

Control system

PLC controller

Rotor blade

2 wings design

Heating and cooling

Steam heating and water cooling

¡@

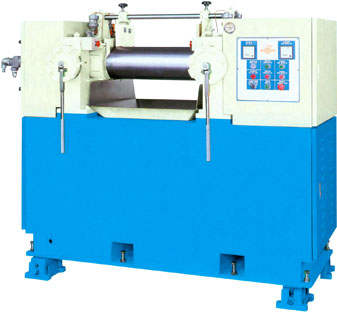

Laboratory Mill for Rubber & Plastic

This laboratory mill is essential equipment for experimental development of rubber and plastic materials. It is primarily used for mixing and testing small quantities of rubber or plastic to achieve uniform consistency that meets customer requirements.

Model

PHT - 22

PHT - 23

PHT - 24

PHT - 25

Roll size

£X 6¡¨ x 15¡¨ L

£X 8¡¨ x 24¡¨ L

Motor

AC 5 HP

DC 5 HP x 2

AC 10 HP

DC 7.5 HP x 2

Capacity

0.5 - 1 kgs / batch

1 - 2 kgs / batch

¡@
