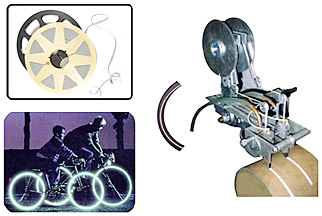

Reflective Tire Sheeting Applicator


This tire sheeting is applied to the green (unvulcanized) tire carcass as a final step in the tire building process. The reflective stripe is then molded with the tire and is actually vulcanized to the tire rubber. The reflective stripe becomes a part of the tire itself and cannot be removed without effectively ruining the tire.

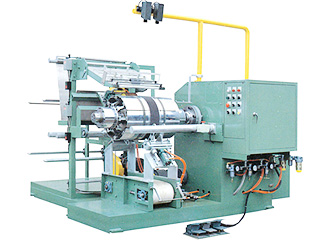

Bicycle Tire Building Machine

¡@

Model

PHT - 1221

PHT - 2228

Tire size

12 1/2 ~ 20”

22 ~ 28”

Nylon cord

1 ply overlap

Drum revolution

50 RPM

45 RPM

Under stitcher

Rubber profile roll

Main shaft motor

AC 2 HP ( Inverter )

Tread servicer motor

1/2 HP x 4P

Ply servicer motor

1/2 HP x 4P

Air supply

5 ~ 7 kg / cm

Building speed

25 ~ 30

sec / pc

30 ~ 35

sec / pc

¡@
