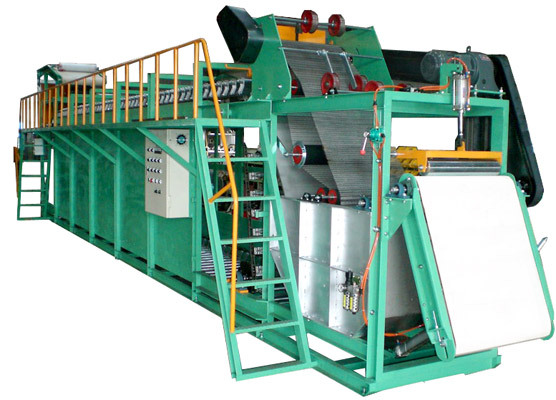

Batch off cooling machine PHT high performance batch-off is designed to handle slabs of rubber compound with a maximum width of up to 650 mm and several stackers and other options are available to meet all your requirements.
| ¡@ |
| ¡@
¡@
¡@ ¡@ |
Model | PHT - 610 | PHT - 700 | For mixer¡¦s size | 50L ~ 100L | 110L ~ 150L | Max. sheet width | 650 mm | 700 mm | Sheet thickness | 4 - 10 mm | Max sheet inlet speed | 30 m / min | Distance between hanger | 150 mm | Sheet storage capacity | 1075 kgs | 1500 kgs | Effective hanging bar | 43 pcs | 52 pcs | Cooling method | Water / Air cooling | Sheet inlet section motor | 2 HP | Storage section motor | 3 HP | Continuous stacker motor | 1 HP | Motor | 2 HP with inverter | Industrial cooling fan | 18¡¨ x 1/2 HP x 12 sets | 16¡¨ x 1/2 HP x 28 sets | Total power | 14 HP | 22 HP | Electric control | PLC control system | Sheet temp. after cooling | < 40 ¢XC | Machine dimension | L 1200 x W 167 x H 300 cm | L 1350 x W 190 x H 370 cm | Optional attachment | Continuous stacker, Stripper device, Auto cutter device |
|
|
Slicing machine | ¡@ | PHT high performance slicing machine with auto feeding is designed to handle rubber compound, PU, PVC with a max thickness of up to 15 mm & 2 mm aluminum board, 1 mm iron board. | |
|
|
Model | PHT - B20 | PHT - B25 | PHT - B30 | Cutting width (mm) | 608 | 759 | 910 | | Cutting length (mm) | 10 - 95 | | Cutting speed | 57 pcs / min | Motor (AC) | 1 HP | 2 HP |
|
|
¡@ Model | PHT - A20 | PHT - A25 | PHT - A30 | Feeding width ( mm ) | Max. 608 | Max 759 | Max 910 | Separating string width ( mm ) | Max. 514 | Max 664 | Max 817 | | String separating speed ( a cut / min ) | 8200 | 8200 | 8200 | Packing size ( mm ) | 1210 x 1090 x1300 | 1210 x 1210 x 1300 | 1350 x 1210 x 1300 |
| Features:
1. Supplied triple set blades. Fully control on string separating width.
2. Special thermal treatment on cutting blades to ensure long lasting life and solid cut
3. Adopt upper and lower blades design
4. Machine can operate independently from all other machine
5. Separating Speed, optional accessories can be priced separately.
6. All standard blades mentioned above will compose three cutting sets. | |
Stationary rubber string cutting machine |
|
Model | PHT - L20 | PHT - L25 | PHT - L30 | Cutting width (mm) | 600 | 750 | 900 | Suitable width | 550 | 695 | 850 | Separating string width ( mm ) | 46 | 46 | 46 | | Separating Speed ( a cut / min ) |
8792 |
8792 |
8792 | Machine size ( mm ) |
1100 x 1050 x 1000 |
1150 x 1050 x 1000 |
1300 x1050 x 1000 |
|
¡@ Features:
1. Adopt twin blades design.
2. Special Thermal Treatment on twin cutting blades to ensure long lasting life and solid cut
3. Under normal use, no schedule maintenance or repair will be required
4. Special String Output Port design. This design will prevent machine from stalling as the result of output string.
5. Speed, width, and optional accessories could be negotiable separately.
¡@ |
|
|

|
|
 |
¡@
